Weigh In Motion System Including Data Logging And Weight Data Capture

Product Description:

The High Speed Weigh In Motion (WIM) product represents a cutting-edge solution in the field of dynamic weighing technology, integrating high-velocity dynamic weighing technology to provide accurate and efficient vehicle weight measurement at various speeds. Designed to operate seamlessly in demanding environments, this swift dynamic weighing system is engineered to deliver precise data collection without interrupting traffic flow, making it an invaluable tool for transportation management, tolling, and enforcement agencies.

One of the standout features of this High Speed Weigh In Motion system is its capability to measure vehicle weights at speeds ranging from 0.5 to 120 km/h. This broad speed range ensures that the system can capture accurate weight data for slow-moving traffic as well as high-speed vehicles, thereby enhancing operational flexibility and effectiveness. The ability to perform high-velocity dynamic weighing allows for real-time data acquisition, which is critical for applications requiring swift and reliable vehicle classification and weight assessment.

The system utilizes advanced sensor technology, specifically piezoelectric sensors, renowned for their sensitivity and durability. These sensors are integral components of the swift dynamic weighing system, enabling it to detect and measure the dynamic loads exerted by vehicles as they pass over the weighing platform.

Durability and reliability are paramount in the design of this High Speed Weigh In Motion product. It boasts an IP68 rating for waterproof and dustproof protection, which means it is fully protected against dust ingress and can withstand continuous immersion in water. This level of protection makes the system suitable for deployment in various challenging outdoor environments, including roads subject to heavy rain, dust storms, and other harsh weather conditions, without compromising its operational integrity.

Data management is streamlined through the onboard memory feature, which facilitates efficient data logging directly within the system. This onboard memory capability allows for the storage of extensive vehicle weight records and related data, enabling comprehensive analysis and reporting. The data logging functionality supports long-term monitoring and historical data retrieval, which is essential for traffic studies, compliance verification, and infrastructure planning.

Maintenance requirements for this swift dynamic weighing system are remarkably low, thanks to its robust construction and intelligent design. The system incorporates remote diagnostics capabilities, which significantly reduce the need for on-site maintenance visits. Remote diagnostics enable operators to monitor system health, identify potential issues, and perform troubleshooting from a distance, thereby minimizing downtime and maintenance costs. This feature ensures that the system remains operational and accurate with minimal intervention.

In summary, the High Speed Weigh In Motion product offers a comprehensive and reliable solution for dynamic vehicle weighing needs. By combining high-velocity dynamic weighing technology with durable sensor options, an impressive speed range, advanced data storage, and low-maintenance features supported by remote diagnostics, this swift dynamic weighing system stands out as a state-of-the-art tool for modern traffic management and enforcement. It empowers agencies and operators to efficiently monitor vehicle weights, enhance safety, and optimize roadway usage without disrupting normal traffic flow.

Technical Parameters:

Applications:

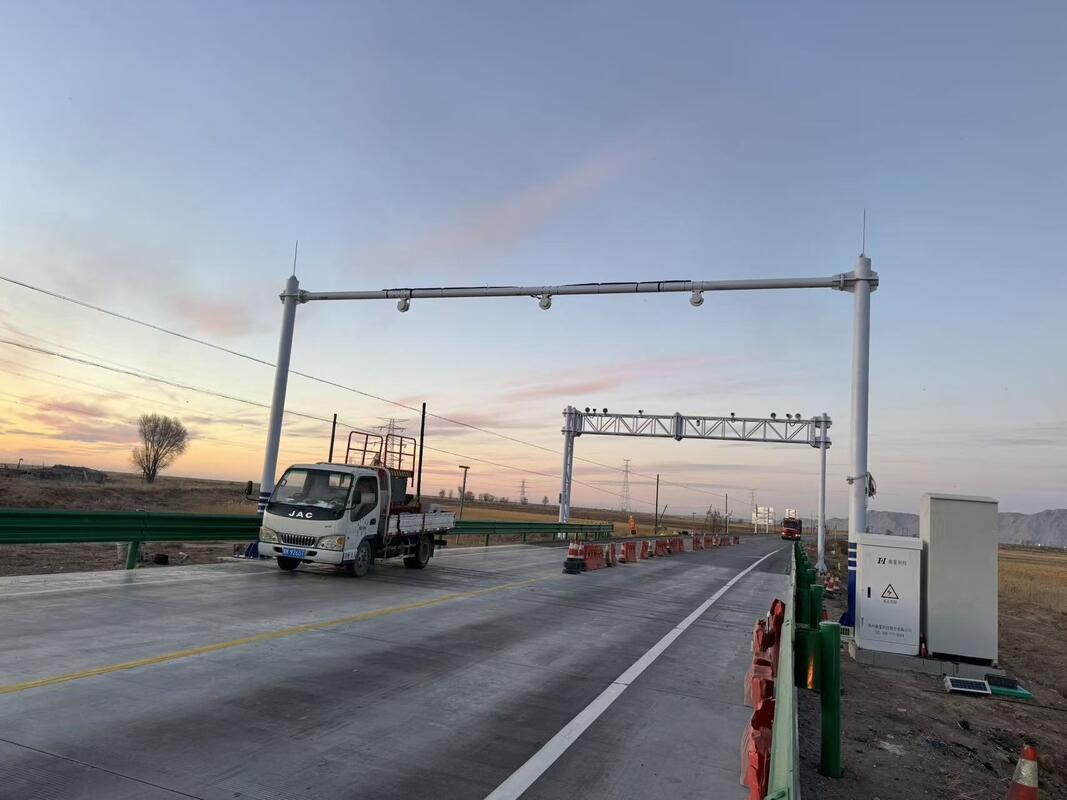

The Hengliang High Speed Weigh In Motion system, model ZQS-40-SY, is engineered for a variety of demanding product application occasions and scenarios where precise, rapid, and reliable vehicle weight measurement is critical. Utilizing cutting-edge high-velocity dynamic weighing technology, this agile on-the-go weighing system is designed to accurately capture axle and vehicle weights without interrupting traffic flow, making it ideal for busy highways, toll stations, and logistics hubs. Its accelerated weight-in-transit system ensures that vehicles can be weighed at high speeds, enhancing efficiency and minimizing delays in transportation and freight handling operations.

In the transportation and logistics sectors, the Hengliang ZQS-40-SY excels in scenarios such as highway weigh stations and port entry points where continuous monitoring of vehicle loads is necessary to enforce weight regulations and prevent road damage. Its piezoelectric quartz sensors provide high precision measurements even under dynamic conditions, supporting effective overload detection with a maximum overload capacity of 60 tons per single axle. This robust feature is critical for applications involving heavy-duty trucks and freight carriers, enabling authorities and operators to maintain safety standards and optimize fleet management.

Industrial facilities and manufacturing plants also benefit from the Hengliang High Speed Weigh In Motion system when managing inbound and outbound shipments. The system’s quick response and reliable data capture capabilities reduce bottlenecks in loading docks and distribution centers, thanks to its agile on-the-go weighing design that operates seamlessly at AC 220V working power. Furthermore, with ISO certification ensuring quality and reliability, this system is suited for environments that demand high accuracy and compliance with international standards.

The flexibility of the Hengliang ZQS-40-SY is further demonstrated in its packaging and supply logistics; each set is carefully packed in a wooden box for secure delivery within 5-10 days, with a minimum order quantity of just one set and a competitive price range of USD 20,000 to 35,000. Its supply ability of 30 sets per month ensures availability for large-scale infrastructure projects or fleet expansions.

Overall, the Hengliang High Speed Weigh In Motion system’s advanced technology and robust construction make it an indispensable tool for scenarios requiring accelerated weight-in-transit system capabilities, such as national highways, ports, industrial checkpoints, and logistics centers, where efficiency, accuracy, and safety are paramount.

Support and Services:

Our High Speed Weigh In Motion (WIM) system is designed to provide accurate and efficient vehicle weight measurement without requiring vehicles to stop. For technical support, we offer comprehensive assistance including system installation guidance, calibration services, software updates, and troubleshooting. Our team of experts ensures that your WIM system operates at peak performance, minimizing downtime and maximizing data accuracy.

We provide regular maintenance services to keep your High Speed WIM equipment functioning reliably under various environmental conditions. Additionally, training sessions are available to help your staff effectively operate and interpret the data from the system. Should you encounter any issues, our support team is equipped to diagnose problems remotely or on-site, ensuring quick resolution.

To enhance your experience, we also offer customized integration solutions to seamlessly connect the WIM system with your existing traffic management and data analysis platforms. Our commitment is to deliver robust support and services that meet the evolving needs of your high-speed weighing applications.

Packing and Shipping:

Product Packaging:

The High Speed Weigh In Motion (WIM) system is carefully packaged to ensure maximum protection during transit. Each unit is enclosed in custom-fitted foam inserts within a sturdy, double-walled carton. The packaging includes anti-static materials to protect sensitive electronic components and moisture-resistant wrapping to prevent damage from humidity. All cables, connectors, and accessories are separately packed and clearly labeled for easy identification upon unpacking. The outer packaging is clearly marked with handling instructions and fragile warnings.

Shipping:

The High Speed Weigh In Motion product is shipped via reliable carriers with tracking and insurance options to guarantee safe delivery. Shipping methods are selected based on customer location and urgency, including expedited air freight for international orders and ground transportation for domestic shipments. Each shipment is accompanied by a detailed packing list and user manual. Our logistics team coordinates closely with customers to arrange suitable delivery times and provide support for customs clearance when necessary.
